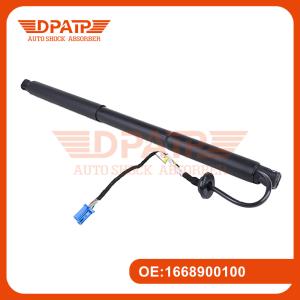

Tailgate Lift Strut For Benz 166 1668901130 Electric Strut Module Rear Right .

Technology

• Electric Strut

The electric strut is a crucial component of the electric tailgate system,consisting of an inner support rod,an outer support rod,a precision booster spring,a planetary gear set,a built-in threaded sleeve,a high-precision screw,and a motor.It converts the motors rotary motion into linear motion to open and close the tailgate.

• Control Module

ECUThe control module system acts as the brain of the electric tailgate system,with a microprocessor at its core,including modules for motor drive,button signal processing,Hall signal processing,and CAN communication.

• Motor Drive

The motor drive module sends PWM waves to the motor through PWM pins,allowing the motor speed to be controlled by adjusting the duty cycle of the PWM waves.

• Hall Sensor

The Hall sensor is used to monitor the motors speed and determine the direction of rotation,which is crucial for controlling the opening and closing of the tailgate.

Advantage

• Convenience

Allows for easy opening and closing of the tailgate with the press of a button,which is particularly useful when hands are full or when the user is standing at a distance from the vehicle.

• Hands-Free Operation

Often equipped with a sensor,the tailgate can be opened or closed hands-

free,which is especially helpful in situations where cleanliness is a concern or when the user is carrying items.

• Height Adjustment

Some electric tailgate struts allow for the adjustment of the opening height,catering to

users of different heights or in different parking situations.

• Safety

Incorporates anti-pinch technology to prevent injury by stopping the tailgate from closing if an object or person is detected in the path.
